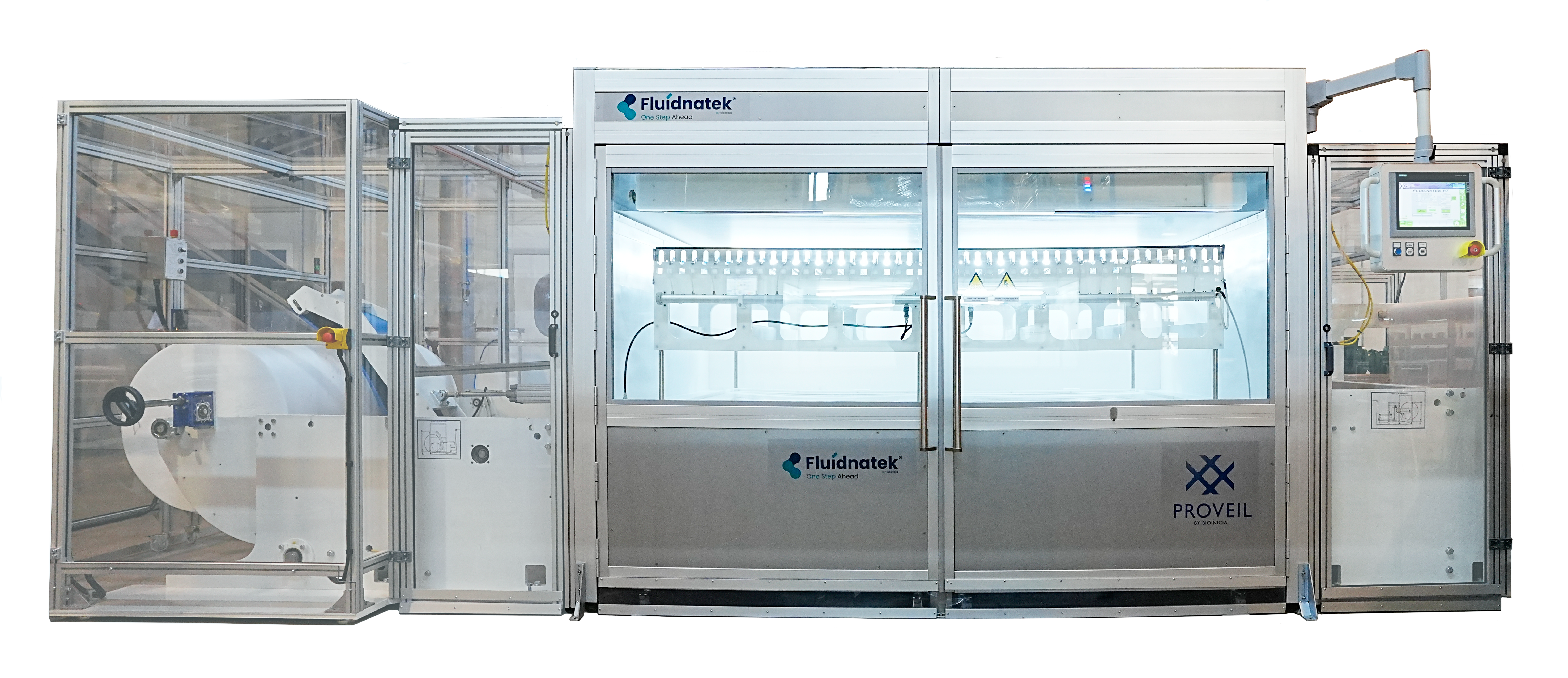

Industrial Electrospinning Machine
The Equipment of Choice for Industrial Manufacturing and Commercialization
Fluitnatek HT工业静电纺丝机是当需要大规模生产和样品再现性时理想的工业设备。这种工业静电纺丝线利用生物碱材料处理领域的专业知识和经验。
Industrial Electrospinning Machine Features
The Fluidnatek HT provides state-of-the-art features for industrial scale production and commercialization of electrospun products under GMP and reproducible performance. The HT system has been engineered to operate 24/7, leveraging 5,500+ simultaneous needles, a 1.6 meter wide roll substrate, and up to 60 L of solution for uninterrupted processing of large batches. Batch-to-batch consistency is easily maintained, and temperature and relative humidity can be tightly controlled thanks to the environmental control unit (ECU). Some of the safety features include an actively regulated exhaust system to remove solvents continuously and dynamically, along with preventing them from escaping the spinning chamber. If flammable solvents are to be used, the Fluidnatek HT allows you to work under an inert atmosphere (with very low oxygen concentration) to further increase safety aspects to the user and the facility.
Selected Standard Features:
- 产品商业化工业规模生产单位
- Industrial Roll-to-Roll system
- Touchscreen controls
- 自下而上的配置
- 发射器的主要高压电源
- 集电器的二级高压电源
- Gravimetric controlled continuous solution feeding system
- 10 kg/h+ solution mass flow rate (solution dependent)
- Non-spill quick connectors
- Environmental Control Unit ECU (temperature and relative humidity)
- Single-phase multi-emitter spinning head
- Safety shut-off switches in the access door
- 积极规范的排气系统

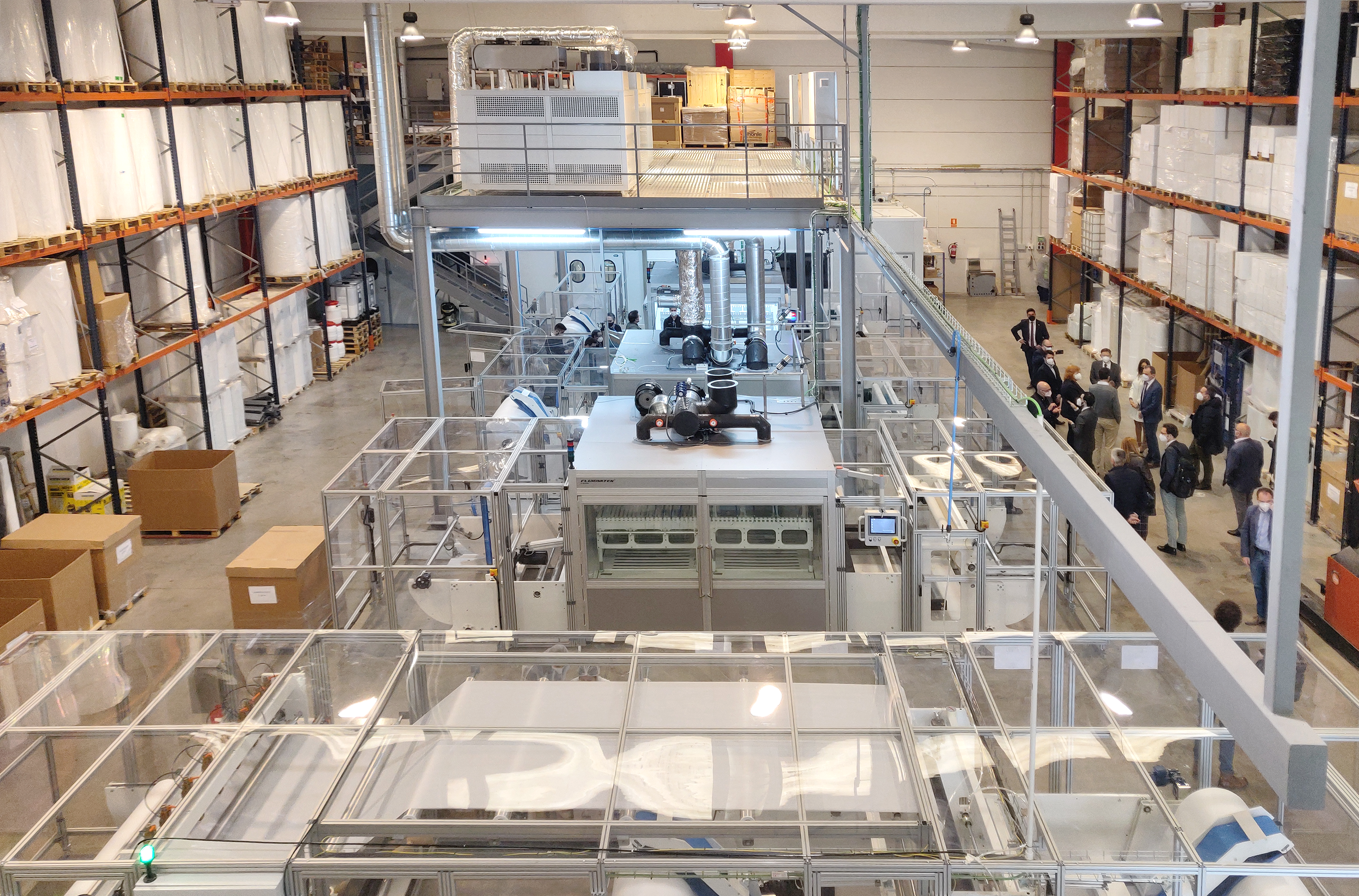

Industrial Electrospinning Production Capacity
580 thousand masks per month
7 Million masks per year
7 Million masks per month
84 Million masks per year
Specifications
| Model | Fluidnatek HT |
|---|---|
| Maximum width of samples (mm) | 1,600 |
| 最大注射泵数 | N/A |
| Maximum number of needles | 5,500+ |
| Maximum voltage drop (kV) | 120 |
| 每批最大体积（ml） | 60,000 |
| Dual polarity | 标准-60 kv. |
| Automatable axes | 1 (X) |
| Solvent gas jacket | Optional |
| 泰勒锥可视化相机 | N/A |
| Ultraclean cabinet (HEPA/ULPA exhaust filtration) | Optional |
| UV-C lamps | Optional |
| 远程以太网访问 | Yes |
| Actively regulated exhaust | Standard |
| Relative humidity & temperature conditioning | Standard |
| Dimension, W x D x H (cm) | 900 x 260 x 220（ht） 300 x 150 x 200 (ECU) |
