配件for the Phenom Pro/Pure

Sample Holders

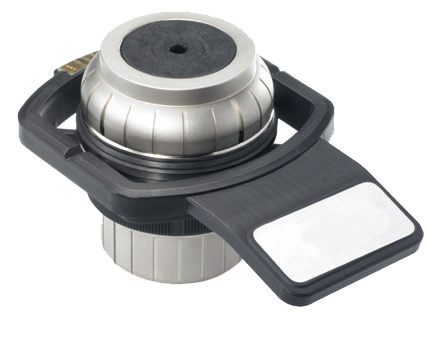

Standard Sample holder for Phenom SEM

Standard Sample Holder

The ultimate high-resolution sample holder. The standard sample holder is shipped as standard with every Phenom system. Optimized for best imaging results and able to accommodate 3D samples mounted on standard sample pin stubs.

Key Specifications

  • Sample size up to 25 mm diameter and 30 mm height

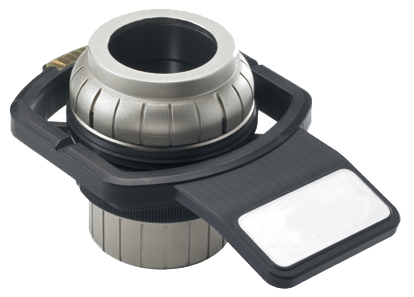

Metallurgical Sample holder for Phenom SEM

冶金样品持有人

该样品持有人的基础与标准样品持有人的基础相同，只是该持有人旨在支持树脂安装的样品。该持有人是冶金和插入材料时首选的解决方案。对于此样品持有人，有两个插入物可用来实现快速样品准备。

Key Specifications

  • 样品尺寸高达32毫米直径和30毫米高度

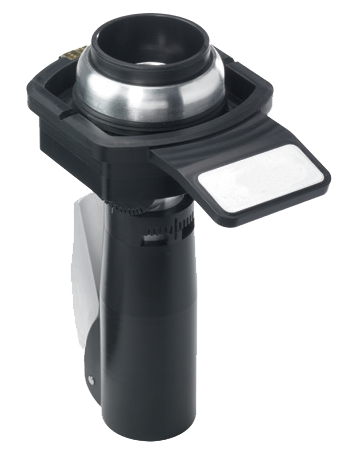

Micro Tool and Tilt-Rotation Sample Holder

Micro Tool and Tilt-Rotation Sample Holder

微型工具样品持有人可能会进行成像长轴向样品，而无需进行样品修饰。使用微型工具样品持有器，钻头，铣削工具和注入针等成像对象很容易。通过旋转和倾斜感兴趣的区域而无需从支架中卸下样品，就可以通过成像涂层和切割角。

Key Specifications

  • Quick and fast clamping
  • 倾斜和旋转可以轻松放置样品定位
  • No extra tooling required for sample loading
  • 不需要样品修改

Charge Reduction Sample Holders

这些样品持有人允许低空模式不会降低源寿命。

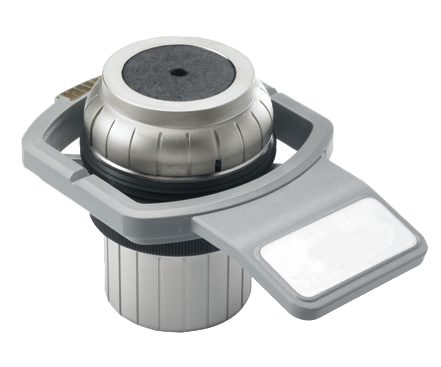

Charge Reduction Sample Holder for Phenom SEM

Charge Reduction Sample Holder

This sample holder is designed to reduce sample charging and eliminate extra sample preparation of non-conductive samples. Imaging samples such as paper, polymers, organic materials, ceramics, glass and coatings becomes fast and trouble free.

Key Specifications

  • Up to 8 times higher magnification before charging is visible compared to the standard Phenom sample holder.
  • 溅射涂层的需求大大减少，因此不需要其他设备和更快的样品准备。
  • Non conductive samples can be imaged in their natural state providing valuable backscatter material contrast information.

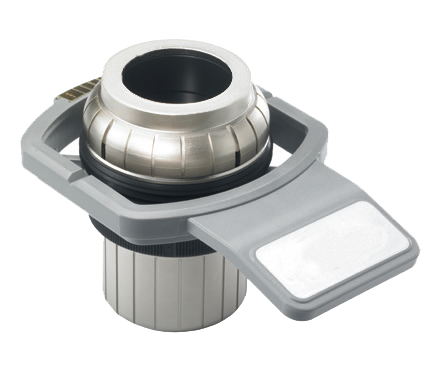

Metallurgical Charge Reduction Sample Holder for Phenom SEM

Metallurgical Charge Reduction Sample Holder

该样品持有人消除了树脂安装样品的额外样品制备。这样，成像样品变得快速且没有麻烦。对于此样品持有人，有两个插入物可用来实现快速样品准备。

Key Specifications

  • Up to 8 times higher magnification before charging is visible, compared to the standard Phenom sample holder.
  • 溅射涂层的需求大大减少，因此不需要额外的设备，样品制备速度更快。
  • 可以在其自然状态下成像非导电样品，从而提供有价值的背部散射材料对比度信息。

Active Sample Holders

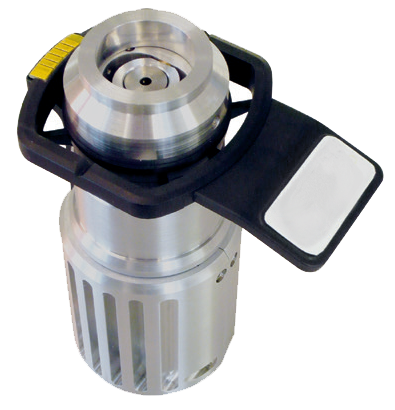

Motorized Tilt Rotation Sample Holder for Phenom SEM

Motorized Tilt Rotation Sample Holder

Revealing the hidden treasures of all features on your sample is now possible with the Motorized Tilt & Rotation Sample Holder. Samples can have lines and holes, or have multi-layer structures. The new Motorized Tilt & Rotation Sample Holder allows analysis of the sample from all visible sides and enables a unique 3D image of your sample.

The Motorized Tilt & Rotation Sample holder is a smart sample holder that does not have any cables attached. The sample holder interface board automatically identifies the sample holder type and will directly transfer tasks to the holder.

Key Specifications

  • Tilt range -10° to +45°
  • 连续的360°合并旋转
  • Controlled by dedicated Motion Control Pro Suite application
  • Tilt adapted focus
  • Align X and Y

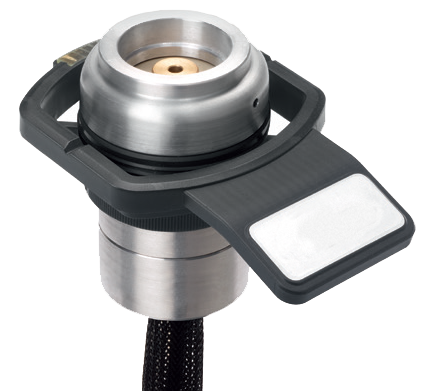

Temperature Controlled Sample Holder for Phenom SEM

Temperature Controlled Sample Holder

温度控制的样品持有人可以研究真空敏感和脆弱的样品，例如生物，食物或有机涂层。温度控制的样品持有人能够控制样品的温度，因此影响样品周围的湿度。这可以最大程度地减少电子束的影响和样品的真空损伤。

该主动样品持有人基于毛发原理，并以一种可以快速轻松地调节温度的方式设计。样品温度由专用键盘控制器准确监测和控制。温度控制样品持有人的温度可以从-25°C至 +50°C控制，精度为±1.5°C。

Key Specifications

  • Temperature range -25°C to +50°C
  • Temperature accuracy ±1.5°C
  • Temperature display resolution 0.1°C
  • Maximum cooling rate 20°C/min
  • Sample size up to 25 mm diameter and 5 mm height
