Uniquely Designed for Electrospinning Tubular Medical Products Under Sterile Conditions
The ideal electrospinning system for biomedical companies that need to coat stents, or fabricate vascular grafts, heart valves, and other tubular structures in an environment that meets standards for an ISO-7 environment, cGMP, or ISO-13485 certification.
Features

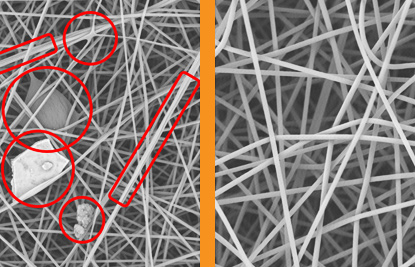

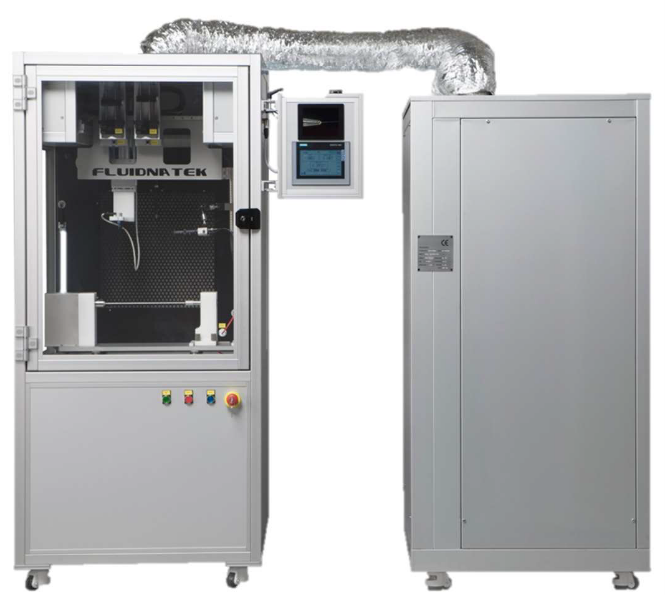

Fluidnatek le - 100 Biotubing电纺的system was carefully designed to maintain sterile processing conditions for tubular medical device manufacturing. This unique system utilizes HEPA filtration to meet ISO-7/Class 10,000 cleanliness standards, and is constructed from materials that support easy sterilization. The LE-100 Biotubing also offers a longer sample development than the standard LE-100 model, and features a quick-release, tensioned rotating collector platform for thin diameter mandrels (1-5 mm) to efficiently exchange collectors and minimize user handling time. A rear pin electrode further improves the electrostatic field, enhancing sample deposition and uniformity. An environmental control unit (ECU) ensures precise control over the temperature (18-45°C), relative humidity (10-80%), and air flow (90-180 m3/h) during processing for perfect nanofibers, every time.
Selected Standard Features
- 触屏控制
- Primary and negative HV power supply
- Traverse rear pin electrode
- Twin-channel syringe pump
- Active exhaust system
- Rotating collector platform
- X-axis automated scanning emitter motion
- Data logging and export function
- Advanced recipe option
- Environmental control unit (ECU)
Specifications
| Model | Fluidnatek LE-100 |
|---|---|
| Maximum sample size (mm) | 400 X 314 |
| Maximum number of syringe pumps | 2 |
| Maximum number of needles | 40 |
| Maximum voltage drop (kV) | 60 |
| Maximum volume per batch (mL) | 560 |
| Dual polarity | Standard -30 kV to +30 kV |
| Automatable axes | 3 (X,Y,Z) |
| Solvent gas jacket | Optional |
| Taylor cone visualization camera | Optional |
| Ultraclean cabinet (HEPA/ULPA exhaust filtration) | Optional |
| UV-C lamps | N/A |
| 远程等hernet access | Yes |
| Actively regulated exhaust | Yes |
| Relative humidity & temperature conditioning | Yes |
| Dimension, W x D x H (cm) | LE-100 Bio: 90 x 124 x 195 ECU: 90 x 110 x 190 |
| More info | Compare with all Fluidnatek Models |
